All-in-One
Three components. One unit.
4× MPPT, a 2,400 W bidirectional inverter and 5 kWh LFP storage are combined in one integrated system.
SunEnergyXT 500 series
Your modular energy system for solar power, grid charging and backup power.
Explore SunEnergyXT 500, 500 PRO and 500 PRO AC CORE: three product lines for different energy sources, power requirements and households.
Technical information
Functions, connection type, Smart Meter and technical requirements vary by product line and system configuration.
3
Product lines
5 kWh
Base capacity
up to 2,400 W
Backup power per main unit
5–90 kWh
modular system planning
SunEnergyXT 500 series
Key features of the SunEnergyXT 500 series.
From all-in-one technology and 5 kWh base capacity to 4× MPPT, backup power, expansion and local control: see the key features at a glance.
5 kWh LFP battery
More energy from the first module
Start with 5 kWh storage capacity and use stored solar energy in the evening and at night.
4× 625 W MPPT
Get more from your solar panels
Connect up to eight solar panels directly. Four independent MPPT channels manage different orientations and partial shading.
Backup power
An energy reserve during power cuts
Depending on the model, UPS mode switches to the separate backup output of up to 2,400 W within up to 10 ms.
Expandable
From 5 to 30 kWh per tower
Expand your compatible system gradually with additional batteries instead of oversizing it from the start.
EVE LFP cells
Premium cells for long-term use
The confirmed 500 models use EVE LFP cells with over 10,000 cycles under the specified test conditions.
App & local API
Smart control, including local access
Monitor energy flows in the app and use local interfaces and Home Assistant, depending on the model, firmware and configuration.
Local energy management
Control zero export
With a compatible Smart Meter, output power can be adjusted to your household consumption.
Designed for outdoor use
IP65 and passive cooling
Depending on the model, the system is intended for outdoor use and operates with passive, fanless cooling.
Bidirectional
Solar or grid charging
Depending on the product line and configuration, the bidirectional inverter can use solar energy or grid electricity.
Functions, power, local interfaces, grid charging and expansion limits vary by product line, firmware, Smart Meter and system configuration.
Tests & media
Tested and reviewed by external media
COMPUTER BILD / BILD Kaufberater bewerten den SunEnergyXT 500 im Praxis-Test mit „sehr gut“. home&smart vergibt 92/100 Punkte und hebt vor allem Kapazität und Erweiterbarkeit hervor.
COMPUTER BILD / BILD Kaufberater
Praxis-Test: „sehr gut“
Sehr gut
Focus on capacity, fast power regulation and build quality.
home&smart
Sehr gut · 92/100 Punkte
92 von 100 Punkten
Highlights include 5 kWh capacity and modular expansion.
Context
Tests, media & information
Findings in context
Sources, limitations and differences between 500 and 500 PRO clearly explained.
External tests and media reports do not replace individual system planning. We summarise their findings and link to the original sources.
Everyday energy flow
How the 500 series works throughout your day.
See how generation, storage, consumption and backup power work together. Actual functionality depends on the product line and system design.
Morning: understand your consumption
The app and Smart Meter show how much energy your household needs and where it comes from.
Daytime: store energy
500 and 500 PRO use directly connected solar panels. AC CORE adds AC-coupled storage to existing PV systems and supports grid charging. Direct PV connection on AC CORE is only possible after activating the separately available, paid MPPT software upgrade.
Evening: use stored energy
Stored energy is available for the household or selected loads connected to the backup output.
Night: plan your reserves
Set charging targets and reserves to suit your consumption, electricity tariff and desired backup reserve.
Applications
How the 500 series fits your everyday life.
Choose your application and see how the product line, capacity and power reserve work together.
Start with a compact solar system.
SunEnergyXT 500 combines direct PV connection with 5 kWh storage, up to 800 W grid feed-in and up to 2,400 W at the backup output.
Make better use of your existing solar power.
Plan storage, energy metering and the product line to suit your existing PV system, consumption and desired power reserve.
500 PRO for higher power requirements.
Up to 2,400 W grid feed-in and up to 2,400 W backup output per main unit. Multiple main units require suitable technical planning and approval.
Increase capacity step by step.
Add compatible B500 batteries to suit your energy needs. Additional batteries increase capacity, but do not automatically increase output power.
Plan battery storage and electric mobility together.
Consider the vehicle, wallbox, charging power, grid connection and electrical installation from the start. The 500 series provides the storage component, not the complete charging infrastructure.
Keep energy in reserve for essential equipment.
Plan your backup reserve for the fridge, router, lighting and other essential loads. Output power and runtime depend on the model, capacity and load profile.
Three product lines · one system family
500, 500 PRO or 500 PRO AC CORE?
Choose the product line according to your energy source and required grid feed-in power. B500 adds storage capacity to compatible systems.
01
SunEnergyXT 500 · Starter system
Store solar power and use it later.
SunEnergyXT 500 combines direct PV connection, 5 kWh base capacity, up to 800 W grid feed-in and up to 2,400 W backup output as a starting point for your system.
02
SunEnergyXT 500 PRO · 2,400 W grid feed-in
More output power for higher demands.
500 PRO offers 2,400 W grid feed-in and 2,400 W backup output with direct PV connection. The required capacity and electrical planning depend on your load profile.
03

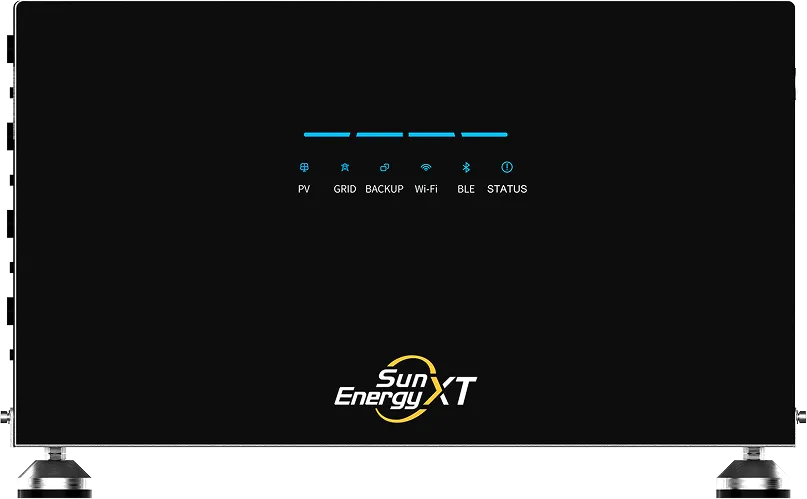

500 PRO AC CORE
Keep your existing PV system. Make better use of solar power.
500 PRO AC CORE adds AC-coupled retrofit storage to an existing PV system. A compatible Smart Meter measures surplus and consumption; each main unit provides 5 kWh nominal capacity (4.8 kWh usable), 2,400 W grid-connected AC power and 2,400 W backup power. A qualified installer must plan the installation and electrical protection to suit the system.
04
B500 · Modular expansion
More capacity as your needs grow.
B500 adds another 5 kWh nominal capacity to a compatible 500, 500 PRO or 500 PRO AC CORE system. More capacity does not automatically increase output power.
Retrofit storage for existing PV systems
Keep your existing PV system. Use more of your own solar power.
500 PRO AC CORE adds AC-coupled storage to your existing photovoltaic system. A working inverter can generally remain part of the system. If exported surplus receives little or no payment, you can store that energy for your own later use. Capacity and system architecture can be expanded modularly as your needs grow.
AC storage from€1.599,00€1.149,00
Auf Lager · sofort lieferbar
01
Retrofit instead of replacing
Your existing PV system remains the foundation.
500 PRO AC CORE adds storage on the AC side of your existing system. A working inverter does not need to be replaced as a precaution; compatibility is checked for your specific system.
02
Put surplus energy to use
Keep more of your solar power for your own use.
If export payments are low or unavailable, store your solar surplus for later use rather than sending it to the grid without making full use of its value.
03
Smart Meter
Manage your energy flows.
A compatible Smart Meter detects generation and consumption, providing the readings needed to charge the battery with solar surplus via the AC connection.
04
Expand modularly
Start with what you need. Expand later.
B500 increases storage capacity. Additional main units increase available system power and require technical planning to suit your needs.
05
Options for future expansion
From retrofit storage to an energy system.
Start with an AC-coupled retrofit and expand the capacity and system architecture later. Direct PV connection on AC CORE requires the separately available, paid MPPT software upgrade and a suitable technical design.
500 PRO AC CORE
AC coupling: how your system works in four steps.
From professional integration to automatic use of your solar surplus.
Step 1
Have AC CORE connected by a qualified professional.
The AC connection is planned and checked to suit your existing system.
Step 2
Set up the SunEnergyXT app.
Connect your system to the app and configure the basic energy settings.
Step 3
Connect a compatible Smart Meter.
The manufacturer currently lists Shelly 3EM, Shelly Pro 3EM, Shelly EM-50, EcoTracker IR, EcoTracker P1 and bitShake as compatible metering solutions.
Step 4
Use your solar surplus at home later.
The compatible Smart Meter measures generation and consumption. AC CORE uses these readings to store available solar surplus for later use.
A qualified installer must check the AC connection, Smart Meter, grid connection and electrical protection for the existing system.
Compare models
Three product lines. Find your match.
Compare energy source, direct PV input, grid feed-in, backup output and technical planning requirements.
| Function | 500 PRO AC CORE | 500 | 500 PRO |
|---|---|---|---|
| Your starting point | Keep your existing PV system and add AC-coupled storage | New or separate direct PV connection · up to 800 W grid feed-in | New or separate direct PV connection · up to 2,400 W grid feed-in |
| Existing inverter | Can generally remain part of the existing PV system · check compatibility | Direct PV connection through the 500 system | Direct PV connection through the 500 PRO system |
| Capacity | 5–90 kWh · up to 30 kWh per tower | 5–30 kWh in 5 kWh steps | 5–30 kWh in 5 kWh steps |
| Grid feed-in / backup power | 2.400 W / 2.400 W | 800 W / 2.400 W | 2.400 W / 2.400 W |
| Suitable if… | You want to add AC-coupled storage to an existing PV system, store solar surplus or use lower-cost grid electricity periods | You want to store solar power directly | You need higher grid feed-in power |
| PV charging | Yes · AC coupling via an existing PV system · direct PV connection only with the separately available, paid MPPT software upgrade | Yes · PV connection | Yes · PV connection |
| Compatible Smart Meters | Shelly 3EM / Pro 3EM · EcoTracker · bitShake | Check according to the energy management setup | Check according to the energy management setup |
| Expand capacity and power | B500 increases capacity · additional main units increase power | B500 increases capacity · power remains model-dependent | B500 increases capacity · multiple main units require technical planning |
| Installation | AC coupling by a qualified installer | Observe connection requirements and applicable rules | Installation by a qualified professional |
| Next step | View AC CORE · check AC retrofit, grid charging and backup power options | Choose a starter offer | Plan capacity and household loads |
Find the right model
Find the right product for your energy system.
Choose whether to add AC-coupled storage to an existing PV system or connect a new PV system directly. Your consumption and power requirements then refine the recommendation.
Your 500 series recommendation
SunEnergyXT 500
A starter system with direct PV connection, 5 kWh base capacity, up to 800 W grid feed-in and up to 2,400 W backup output.
PV
Keeping existing PV and adding AC-coupled storage leads to 500 PRO AC CORE. The Smart Meter, grid connection and electrical protection are checked for the system.
POWER
New direct PV connection: up to 800 W grid feed-in leads to 500; 801–2,400 W leads to 500 PRO. Both offer up to 2,400 W backup power.
PLANNING
B500 increases storage capacity. Additional main units increase available power; electric cars and heat pumps are planned separately.
100 kWh2.000 kWh
0 kWp20 kWp
i
Set the maximum power you want to feed into your household electrical system. This is neither your daily energy consumption nor the power at the backup output. SunEnergyXT 500 feeds in up to 800 W. 500 PRO and 500 PRO AC CORE each feed in up to 2,400 W per main unit. All three product lines also provide up to 2,400 W at the backup output. Multiple main units and their connections require technical planning and approval.
0–800 W500 for new direct PV
801–2.400 W500 PRO for new direct PV
2.401–4.800 W2 main units*
4.801–7.200 W3 main units*
> 7.200 WTechnical review
0 W10.000 W
Additional planning requirements
For this application, we also recommend reviewing the relevant solution or discussing your requirements with us.
Recommended product line500
Recommended storage capacity5 kWh
Next stepChoose product
Products matching your recommendation
Start with a suitable product line and add B500 if needed.
SunEnergyXT 500 PRO AC CORE
Use the AC-coupled retrofit storage system for existing PV systems, scheduled grid charging and backup power. Each main unit provides 5 kWh nominal capacity, 2,400 W AC power and 2,400 W backup power; a qualified installer must check installation and electrical protection.
SunEnergyXT 500
For a starter solar system with direct PV connection, up to 800 W grid feed-in and 2,400 W backup power.
SunEnergyXT 500 PRO
For higher household loads with 2,400 W grid feed-in and 2,400 W backup output.
B500 expansion battery
For more capacity in a compatible 500 system.
Capacity guidance uses 5 kWh steps up to a maximum of 30 kWh per storage tower. For AC-coupled retrofits of existing PV systems, the recommendation is AC CORE. For a new direct PV connection, it depends on the desired grid feed-in power: up to 800 W leads to 500, and higher power to 500 PRO. The result does not replace electrical planning.
System configurator
Recommended configuration
5 kWh
2.400 W
Based on your recommendation
Manual system configuration
Choose capacity and power reserve yourself.
Plan the right system size for you.
Use the guidance from the series finder or adjust capacity and power reserve yourself. The diagram arranges main units and B500 batteries into suitable storage towers.
5 kWhtarget capacity
We prioritise a compact, economical configuration with as few main units as possible.
Recommended configuration
Total capacity
5 kWh
Grid feed-in and backup power
2.400 W
Configuration
1 main unit
Main units
1
Total MPPT channels
4× MPPT
Grid type
Single-phase
Connection
No additional connection required
Availability
Request a technical check
Our recommendation
One main unit is often enough to start.
For small to medium capacities, we initially prioritise a simple configuration. If you need more power later, you can expand to two or three main units.
Multiple main units
When capacity and power grow together.
Additional B500 batteries increase storage capacity. With technically approved system linking, further main units can also provide additional MPPT channels and power reserves.
Up to 7,500 W PV input power
Three main units approved for this setup provide up to twelve MPPT channels with a combined PV input power of up to 7,500 W. System output power is up to 7,200 W, depending on the approved configuration. Panel allocation, electrical limits and system linking require technical planning.
Up to 7.2 kW system power
Available total power depends on the approved device combination, grid connection, electrical protection and electrical planning.
More reserve for your home
Multiple main units provide additional power and backup reserves for larger loads and more demanding energy systems.
Parallel operation, total power and connection type depend on approved control systems, firmware, the grid connection and technical planning.
System architecture
More than capacity: plan main units together.
Expansion batteries primarily increase energy storage. With approved linking, additional main units can also increase power, the number of MPPT channels and system flexibility.
More system power
Depending on the approved system configuration, additional main units can increase power from 2.4 kW to up to 7.2 kW.
More MPPT channels
Each main unit adds four MPPT channels, providing more options for different orientations, partial shading and additional panel areas.
Flexible system architecture
Plan main units according to the required power and add compatible B500 batteries to meet your capacity needs.
Total power and connection type must be planned to match the grid connection, firmware, controls and system approval.
Why does the 500 series start at 5 kWh?
More storage capacity provides reserves for evenings, nights, backup power and later expansion. The right size depends on your consumption and energy source.
More storage capacity for everyday use
With 5 kWh nominal capacity, more energy is available outside daylight hours. According to the technical data sheet, the EVE LFP cells achieve more than 10,000 charge cycles under the test conditions specified there.
Backup for selected loads
Selected loads can be supplied through the separate backup output. Runtime depends on available capacity, state of charge and the connected load.
Plan grid charging
Depending on the product line, tariff and system configuration, the battery can be charged from the grid at selected times. Whether this is economical depends on your tariff, consumption and charging pattern.
How the system works inside.
MPPT controllers, inverter, battery, Smart Meter and backup output each perform different tasks. Equipment varies by product line.
-
4× 625 W MPPT solar charge controllers
SunEnergyXT 500 and 500 PRO have four independent MPPT channels, each supporting up to 625 W. Voltage, current, wiring and panel selection must remain within the technical limits. On AC CORE, direct PV connection is only possible with the separately available, paid MPPT software upgrade.
-
2,400 W bidirectional inverter
The bidirectional inverter converts stored energy into 230 V AC and, depending on the product line and configuration, supports charging from the household electrical system. Grid feed-in is up to 800 W for 500 and up to 2,400 W for 500 PRO and 500 PRO AC CORE.
-
5 kWh LFP battery
According to the technical data sheet, the EVE LFP cells have 314 Ah and 5,024 Wh nominal energy. How long the stored energy lasts depends on the state of charge and consumption.
Keep track of your energy.
Monitor generation, consumption, battery status and energy flows through the app and available local interfaces.
-
Real-time energy monitoring
Keep track of PV, battery, grid flow and consumption.
-
Local regulation from 1 second
According to the manufacturer, the system can respond to load changes in as little as one second in local mode.
-
Home Assistant & local API
Local API and Home Assistant integration for compatible system configurations.
-
UPS mode
Separate backup output with a switching time of no more than 10 ms according to the technical data sheet.
-
OTA updates
Install new features and improvements through the app.
-
Local interfaces
Available local functions depend on the model, firmware and system configuration.
Compare the technical differences.
Compare SunEnergyXT 500, 500 PRO and 500 PRO AC CORE by energy source, grid feed-in, backup output and PV connection.
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Battery capacity | 5 kWh | 5 kWh | 5 kWh |
| Usable capacity | 4.8 kWh | 4.8 kWh | 4.8 kWh |
| Energy source | Direct PV connection | Direct PV connection | AC coupling to existing PV · grid charging |
| Grid feed-in / backup power | 800 W / 2,400 W | 2,400 W / 2,400 W | 2,400 W / 2,400 W |
| MPPT inputs | 4 × 625 W | 4 × 625 W | 4 × 625 W hardware · use requires a paid software upgrade |
| UPS switching time | ≤ 10 ms | ≤ 10 ms | ≤ 10 ms |
| Protection rating | IP65 | IP65 | IP65 |
| Charge cycles | > 10,000 | > 10,000 | > 10,000 |
| Warranty | 10 years | 10 years | 10 years |
| Installation | Depending on connection type | Qualified installer | Qualified installer |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Battery voltage range | 12.5 V – 18.25 V | 12.5 V – 18.25 V | 12.5 V – 18.25 V |
| Nominal voltage | 16 V | 16 V | 16 V |
| Max. continuous discharge current | 157 A | 157 A | 157 A |
| Battery capacity (nominal energy) | 5,024 Wh | 5,024 Wh | 5,024 Wh |
| Usable capacity | 4.8 kWh | 4.8 kWh | 4.8 kWh |
| Battery current limiting module | 5 A | 5 A | 5 A |
| Max. battery modules per tower | 6 (1 main storage unit + 5 expansion batteries) | 6 (1 main storage unit + 5 expansion batteries) | 6 (1 main storage unit + 5 expansion batteries) |
| Expansion battery weight | 43.5 kg | 43.5 kg | 43.5 kg |
| Expansion battery dimensions (L × W × H) | 536 × 314.7 × 242 mm | 536 × 314.7 × 242 mm | 536 × 314.7 × 242 mm |
| Cell manufacturer | EVE Energy | EVE Energy | EVE Energy |
| Charge cycles | > 10,000 (at 25 °C ± 2 °C, 80 % DoD, 0.5 C/0.5 C, EoL > 70 %) | > 10,000 (at 25 °C ± 2 °C, 80 % DoD, 0.5 C/0.5 C, EoL > 70 %) | > 10,000 (at 25 °C ± 2 °C, 80 % DoD, 0.5 C/0.5 C, EoL > 70 %) |
| Battery certification | UN38.3 | UN38.3 | UN38.3 |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Grid type | Single-phase, two-wire (L, N) + PE | Single-phase, two-wire (L, N) + PE | Single-phase, two-wire (L, N) + PE |
| Grid-connected AC power | 800 W | 2,400 W | 2,400 W |
| Rated charging power | 2,400 W | 2,400 W | 2,400 W |
| Rated output voltage | 230 VAC / 184–253 VAC | 230 VAC / 184–253 VAC | 230 VAC / 184–253 VAC |
| Rated output current | 10.5 A | 10.5 A | 10.5 A |
| Rated frequency range | 50 Hz / 48–52 Hz | 50 Hz / 48–52 Hz | 50 Hz / 48–52 Hz |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Output type | Single-phase AC output | Single-phase AC output | Single-phase AC output |
| Rated AC output power | 2,400 VA | 2,400 VA | 2,400 VA |
| Rated output voltage | 230 VAC / 225–235 VAC | 230 VAC / 225–235 VAC | 230 VAC / 225–235 VAC |
| Rated output current | 10.5 A | 10.5 A | 10.5 A |
| UPS switching time | ≤10 ms | ≤10 ms | ≤10 ms |
| Load compatibility | Common household appliances | Common household appliances | Common household appliances |
| Parallel operation | Up to 3 main units; connection and phase distribution require technical planning | Up to 3 main units; connection and phase distribution require technical planning | Up to 3 main units; connection and phase distribution require technical planning |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| MPPT power | 625 W per channel | 625 W per channel | 625 W per channel after software upgrade |
| Number of MPPT channels | 4 | 4 | 4 after software upgrade |
| Max. DC input voltage | 100 V | 100 V | 100 V after software upgrade |
| MPPT operating voltage range | 20–60 V | 20–60 V | 20–60 V after software upgrade |
| Start-up voltage | 20 V | 20 V | 20 V after software upgrade |
| Max. input current | 22 A × 4 | 22 A × 4 | 22 A × 4 after software upgrade |
| Max. short-circuit current | 25 A × 4 | 25 A × 4 | 25 A × 4 after software upgrade |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Operating temperature | −20 °C to +55 °C (automatic battery heating below 0 °C) | −20 °C to +55 °C (automatic battery heating below 0 °C) | −20 °C to +55 °C (automatic battery heating below 0 °C) |
| Storage temperature | −30 °C to +65 °C | −30 °C to +65 °C | −30 °C to +65 °C |
| Main storage unit dimensions (L × W × H) | 536 × 314.7 × 307 mm | 536 × 314.7 × 307 mm | 536 × 314.7 × 307 mm |
| Main storage unit weight | 58 kg | 58 kg | 58 kg |
| Protection rating | IP65 | IP65 | IP65 |
| Cooling | Passive (natural convection, fanless) | Passive (natural convection, fanless) | Passive (natural convection, fanless) |
| Communication | Wi-Fi | Wi-Fi | Wi-Fi |
| Monitoring | SunEnergyXT App | SunEnergyXT App | SunEnergyXT App |
| Certifications and safety standards | IEC 62109-1/2, IEC 62619, IEC 60730, IEC 61000, EN 18031, VDE 4105, UN38.3 | IEC 62109-1/2, IEC 62619, IEC 60730, IEC 61000, EN 18031, VDE 4105, UN38.3 | IEC 62109-1/2, IEC 62619, IEC 60730, IEC 61000, EN 18031, VDE 4105, UN38.3 |
| Parameter | SunEnergyXT 500 | SunEnergyXT 500 PRO | SunEnergyXT 500 PRO AC CORE |
|---|---|---|---|
| Max. inverter efficiency | 95 % | 95 % | 95 % |
| Max. inverter efficiency (peak) | 95.25 % | 95.25 % | 95.25 % |
| Grid charging efficiency | 94.25 % | 94.25 % | 94.25 % |
| Max. PV charging efficiency | 96.82 % | 96.82 % | 96.82 % after software upgrade |
| Max. round-trip efficiency | 85 % | 85 % | 85 % |
| Battery-to-grid efficiency | 94.12 % | 94.12 % | 94.12 % |
| Static MPPT tracking accuracy | 99.99 % | 99.99 % | 99.99 % after software upgrade |
Dimensions and placement.
Check space requirements, weight and permitted installation conditions before planning your system.
Width
536 mm
Height
315 mm
Depth
307 mm
Weight
58 kg
Important for your planning
01
Main unit536 × 314.7 × 307 mm | 58 kg
02
Battery pack536 × 314.7 × 242 mm | 43.5 kg
03
Passive coolingthe system operates without fans. Operating and ambient noise at the installation location must be considered separately.
04
IP65 protectionaccording to the data sheet, the housing is dust-tight and protected against water jets. The installation instructions, connections and permitted environmental conditions must still be observed.
05
Modular stackingB500 expansion batteries connect directly to a compatible main storage unit. No separate battery connector is specified for the packages on this page.
Purchase, delivery and terms
Important information before ordering.
Alongside the technical details, check the delivery time, payment options, warranty terms and cancellation information for your chosen offer.
0 % VAT where eligibility requirements are met
If the legal requirements are met, a 0 % VAT rate may apply to your photovoltaic system and essential components.
Flexible financing
Depending on the available payment options, you can spread the cost over monthly instalments. Terms and availability are shown before you enter into the agreement.
View financing optionsUp to 10 years of warranty
Depending on the product, a manufacturer's warranty of up to 10 years applies. Check the specific warranty terms for your chosen model before buying.
Dispatch from Germany
Available goods are carefully packed and dispatched from our German warehouse. The current delivery status is shown on each product.
Cancellation information
You can find the legal requirements, time limits and exceptions in our cancellation information.
Widerrufsbedingungen ansehenTax, financing, warranty and cancellation are subject to the applicable legal requirements, product documentation and contractual terms.
500 series products
Choose a main unit, expansion battery or advice.
Start with the right product line. Add B500 only if you need more capacity for a compatible system.
800 W grid feed-in
500
SunEnergyXT 500 – All-in-One Hybrid Storage System (5 kWh / 800 W) · Immediately available
A starting point for storing solar power and using it later.
2,400 W grid feed-in
500 PRO
SunEnergyXT 500 PRO – All-in-One Hybrid Storage System (5 kWh / 2,400 W) · Available immediately
For higher household loads and a larger power reserve.
500 PRO AC CORE
500 PRO AC CORE
SunEnergyXT 500 PRO AC Core – all-in-one hybrid storage system (5 kWh / 2,400 W) · Available for immediate delivery
Use the AC-coupled retrofit storage system for existing PV systems, scheduled grid charging and backup power. Each main unit provides 5 kWh nominal capacity, 2,400 W AC power and 2,400 W backup power; a qualified installer must check installation and electrical protection.
Available for immediate dispatch
Expansion
More capacity
SunEnergyXT B500 Expansion Battery (5 kWh) · Available immediately
Add storage capacity to your compatible 500 system.
Fast shipping from Germany
Secure payment
Advice before purchasing
Technical notes
Product variants, PV power, Smart Meter compatibility and electrical planning must suit your system. Displayed prices and savings come from the linked Shopify products. AC CORE can enable AC-coupled storage of surplus solar energy; the specific technical requirements are checked before purchase.
Resources for your next steps
500 series documents and app
Check the documents before planning, connect your system to the app after commissioning and find important updates in one place.
01
Before purchasing
Technical documents
Check the connection type, dimensions and technical requirements before planning or ordering your system.
02
After commissioning
SunEnergyXT App
Download the app to control your system on your mobile device. View live data, system status and available settings.
03
Service & updates
Stay up to date
Follow our updates for regular information on shipping progress, new functions, new applications and tutorials.
↓ Subscribe to the newsletterSign up in the footer below for updates on shipping, features and guides.
Daniel
Telefonisch geklärt, direkt abgeholt und alles passgenau. Genau so soll ein Solarprojekt laufen.
Die Halterung wirkt hochwertig und passt genau zu meinem Modul.
Customer review
Sauber verpackt, vollständig geliefert und schnell montiert. Genau so soll es laufen.
2025.9 Kundenbewertung
Easy to expand
Das System lässt sich gut erweitern. Für mich war die Kombination aus Speicher und Zubehör entscheidend.
Gute Beratung vor dem Kauf. Fragen zum Balkonkraftwerk wurden schnell beantwortet.
2025.12 Kundenbewertung
A clearer view of everyday energy use
Mit EcoTracker sehe ich schneller, wann Solarstrom erzeugt, gespeichert und im Haushalt genutzt wird.
Store more energy
Preis, Leistung und Erweiterbarkeit passen für mich. Der Speicher macht einen starken Eindruck.
Hilfreiche Beratung und schnelle Antwort auf meine Fragen.
Customer review
Daniel
Telefonisch geklärt, direkt abgeholt und alles passgenau. Genau so soll ein Solarprojekt laufen.
Easy to expand
Das System lässt sich gut erweitern. Für mich war die Kombination aus Speicher und Zubehör entscheidend.
Die Halterung wirkt hochwertig und passt genau zu meinem Modul.
Customer review
A clearer view of everyday energy use
Mit EcoTracker sehe ich schneller, wann Solarstrom erzeugt, gespeichert und im Haushalt genutzt wird.
Sauber verpackt, vollständig geliefert und schnell montiert. Genau so soll es laufen.
2025.9 Kundenbewertung
Gute Beratung vor dem Kauf. Fragen zum Balkonkraftwerk wurden schnell beantwortet.
2025.12 Kundenbewertung
Store more energy
Preis, Leistung und Erweiterbarkeit passen für mich. Der Speicher macht einen starken Eindruck.
Hilfreiche Beratung und schnelle Antwort auf meine Fragen.
Customer review
Clearly explained
Key questions before choosing your 500 series system.
Product lines, energy sources, capacity, backup power and technical planning explained.
Which option suits my home?
SunEnergyXT 500 is the starter option with direct PV connection and up to 800 W grid feed-in. 500 PRO offers direct PV connection and up to 2,400 W grid feed-in. 500 PRO AC CORE is an AC-coupled retrofit storage system for existing PV systems, grid charging and backup power. All three product lines start with 5 kWh nominal capacity and offer up to 2,400 W at the backup output.
What exactly is SunEnergyXT 500 PRO AC CORE?
SunEnergyXT 500 PRO AC CORE is an AC-coupled retrofit storage system for existing PV systems. It offers 5 kWh nominal capacity (4.8 kWh usable), 2,400 W grid-connected AC power and up to 2,400 W at the backup output. Direct PV connection is only possible with the separately available, paid MPPT software upgrade. AC installation must be carried out by a qualified professional.
What are the requirements for AC CORE?
AC coupling, grid connection, electrical protection and the Smart Meter must suit the existing system. The manufacturer lists Shelly 3EM, Shelly Pro 3EM, Shelly EM-50, EcoTracker IR, EcoTracker P1 and bitShake as compatible energy meters. Planning and installation must be carried out by a qualified professional.
How do the Smart Meter and SunEnergyXT app work together?
The SunEnergyXT app shows PV input, battery status, grid feed-in and household consumption. The app supports firmware updates, zero export and UPS mode control. Local interfaces and Home Assistant integration are available for compatible smart home systems.
Why choose 500 PRO rather than 500?
Choose 500 PRO if you need up to 2,400 W grid feed-in rather than up to 800 W, or plan for higher household loads. The backup output is not a distinguishing feature: both SunEnergyXT 500 and 500 PRO offer up to 2,400 W backup power. The specific combination of capacity, PV and consumption should be checked.
Are an electric car, heat pump and installation included?
No. These requirements affect planning but are not automatically included with a product. For complex systems, we recommend getting advice before buying.
When do I need a qualified electrician or advice?
For AC coupling, Smart Meter, electrical protection, grid connection, electric car or heat pump requirements, have the specific design checked by a qualified professional before buying.
How far can 500 PRO AC CORE be expanded?
One main unit starts at 5 kWh. Up to 30 kWh is specified per tower. According to the manufacturer, a system can be planned up to 90 kWh using up to three main units, each with suitable expansion batteries. Multiple main units increase available power as well as capacity; connection and distribution require technical planning.
Can I keep using my existing PV system and inverter?
AC CORE is intended for AC-coupled retrofits of existing PV systems. A working inverter can generally remain part of the existing system. Compatibility between the Smart Meter, grid connection, electrical protection and control must be checked for your specific system before buying.
How do I activate direct PV connection on AC CORE?
The four MPPT channels are physically present. To use them, you need the separately available, paid MPPT software upgrade. Panels, wiring and electrical limits must also be suitable for the system.
Your next step
Find the 500 solution that suits your home.
Compare the three product lines, configure your system size or ask DRBO Greenenergy to review your requirements.
